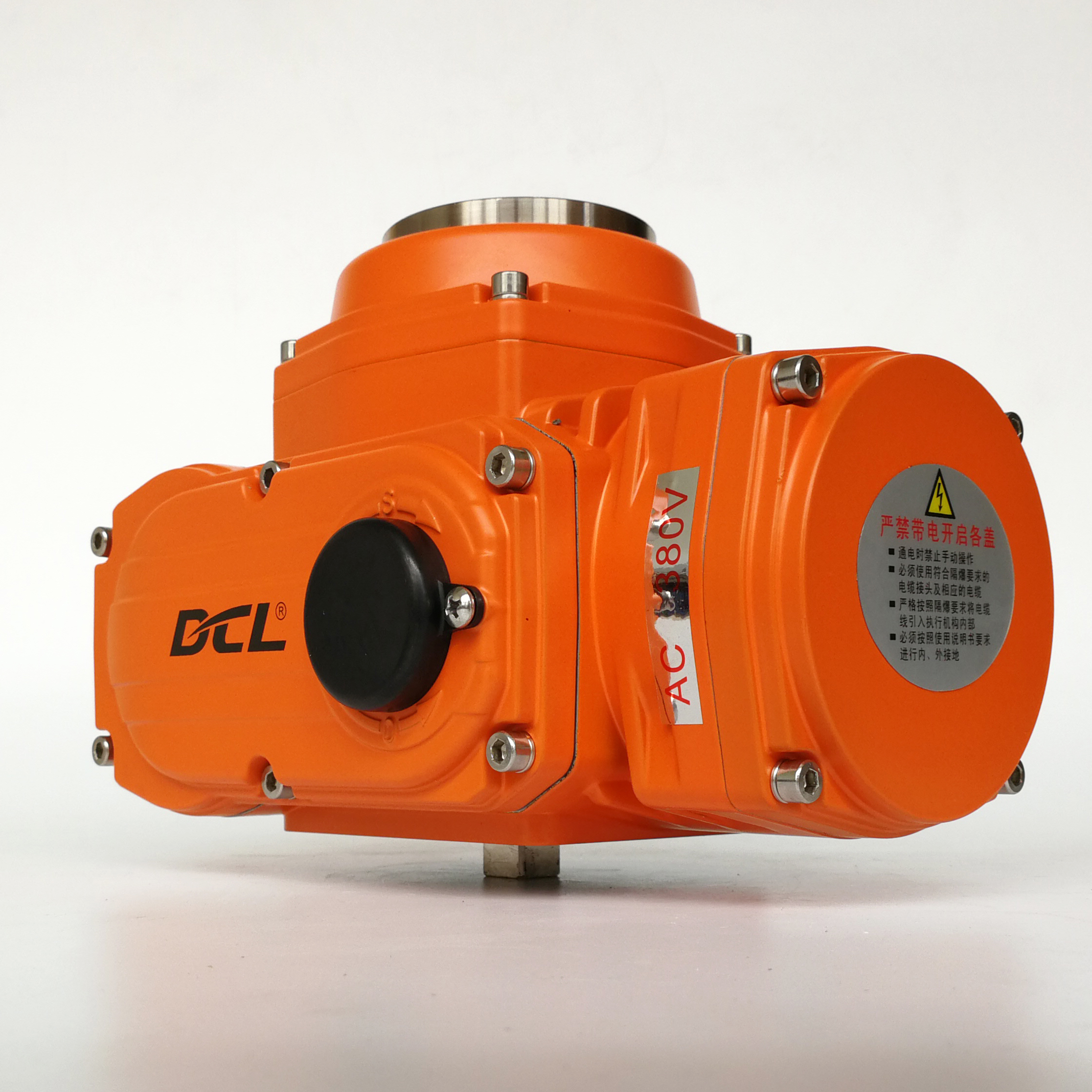

CSA Over torque protection 600Nm AC380V Explosion Proof Electric Actuator

  • CSA Over torque protection 600Nm AC380V Explosion Proof Electric Actuator
Tempat asal WUHAN, CINA
Nama merek DCL
Sertifikasi CE/ROHS/CSA/IP68/IECEx/ATEX/UL
Nomor model DCL-EX10/EX20/EX40/EX60
Kuantitas min Order 1 buah
Kemasan rincian Karton/Palet
Waktu pengiriman 7 hari kerja
Syarat-syarat pembayaran D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan 2000pcs/bulan
Detail produk
Torsi standar 100nm hingga 600nm Waktu standar 30 -an hingga 45 -an
Berat Total 5kg hingga 10kg Catu daya 24VAC/110VAV/220VAC/380VAC/24VDC
Tenaga motorik 15W hingga 90W suhu lingkungan -25 ℃ ~+55 ℃ / -13 ° F ~+131 ° F.
Sudut pemasangan 360° Nilai penyegelan IP68 NEMA4X
Tinggalkan pesan
Deskripsi Produk
DCL-Ex10 Ex20 dimension and parameters.pdf
Over torque protection small packaged explosion proof electric actuator
Features
  • Quarter turn operation with mechanical limits
  • Heavy duty motor with thermal overload protection
  • Rugged IP68/NEMA 4X aluminum alloy housing with powder coating
  • Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
  • Over torque protection is available
  • Anti-condensation heater is optional
  • Standard ISO5211 direct installation
  • Manual override with Allen wrench or handwheel
  • CSA certification
Description

DCL Explosion-Proof Electric Actuators feature an optional integrated over-torque protection system. Built with high-grade, German-engineered disc springs—renowned for their exceptional fatigue resistance and minimal deformation—this system ensures that over-torque settings remain stable and drift-free, even after millions of cycles.

Engineered for the vast majority of explosive gas environments (excluding underground mining), these actuators incorporate highly secure, flameproof motors and electronics. Every mating surface undergoes rigorous precision machining and inspection to guarantee that flame paths strictly contain any internal sparks. Furthermore, the aluminum enclosures are manufactured using high-tonnage die-casting equipment. This creates a highly dense grain structure, enabling the housing to withstand significantly higher internal explosion pressures than standard actuators.

Fully CSA certified to UL and CSA standards, these units comply with both Zone and Division classification systems for hazardous locations.

Specification:
Type Ex05E Ex10E Ex20E Ex40E Ex60E
Power AC110V/AC220V
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm
Acting Time 20S 30S 30S 30S 45S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W
Rated Current 0.24/0.15A 0.57/0.30A 0.63/0.35A 1.12/0.64A 1.18/0.67A
Total Weight 3.0kg 5.0kg 5.5kg 9.5kg 10.0kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance 100MΩ/500VDC
Withstand Voltage Class 1500VAC 1minutes
Protection Class IP68
Explosive-proof grade Exd II CT4Gb
Installation Angle 360°at any angle
Electric Interface

2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector

when using according to the cable selected.
Ambient Temperature -20℃~+60℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch
Remark Any other input or output signal needed, please specified in purchase order.

CSA Over torque protection 600Nm AC380V Explosion Proof Electric Actuator 0

CSA Over torque protection 600Nm AC380V Explosion Proof Electric Actuator 1
