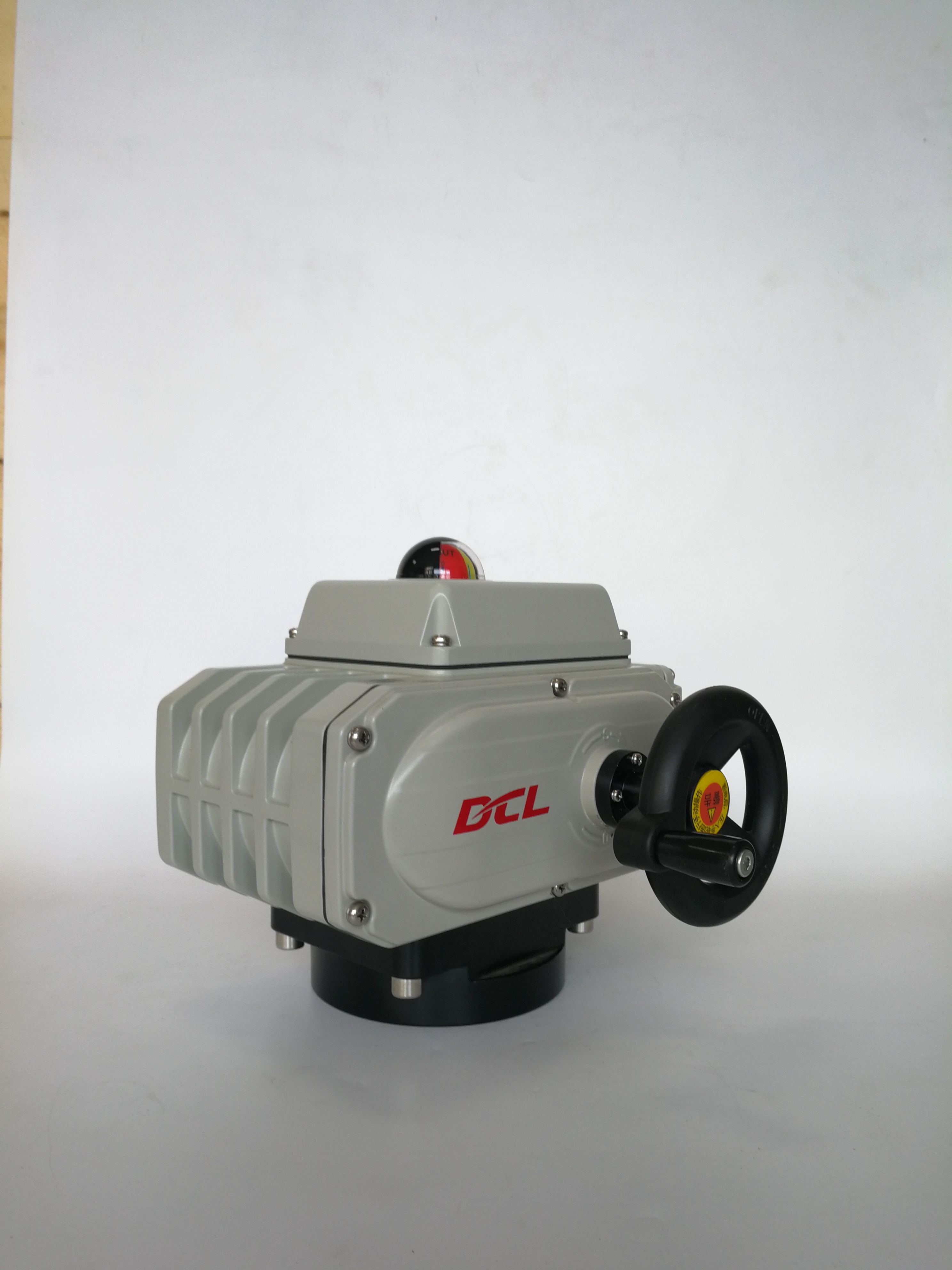

Smart Modulating CSA UL 90W 45S 600Nm Electric Actuator

• Quarter turn with proportional to input control signal, mechanical limits
• Auto-calibrating with continuously output position monitoring signal as standard
• Multi input signal switchable in one smart control pack
• Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
• Heavy duty motor with thermal overload protection
• Fully potted resin plastic packaged controller resistance to vibration and moisture
• Stable operation on extra high/low temperature with high humidity
• High performance EMC with EFT, ESD and high voltage surge tested for control pack
• Standard ISO 5211 multi-flange valve mounting
• All metal gears with self-locking worm gear
• PTC electronic heating component to prevent condensation in actuator
• CSA listed/UL complied/CE marked/RoHS 3.0 tested

DCL modulating electric actuators are equipped with an intelligent, compact controller that supports dual selectable input signals to meet different application requirements. Standard options include 4–20mA and 2–10V, while 4–20mA and 1–5V are available for specialized applications.

In industries where multiple signal standards coexist, or where control systems are undergoing upgrades, DCL smart modulating actuators can be directly replaced without changing the existing control package. This ensures seamless integration and significantly reduces retrofit costs.

All actuators are rigorously tested by CSA in accordance with UL and CSA standards. The entire product series supports a duty cycle of over 70%, ensuring reliable performance in demanding continuous-control applications.

The integrated EPS (Electronic Positioning System) is self-calibrating, effectively eliminating signal “hunting" and improving positioning accuracy. An output position feedback signal is provided as standard, enabling precise monitoring and system control.
