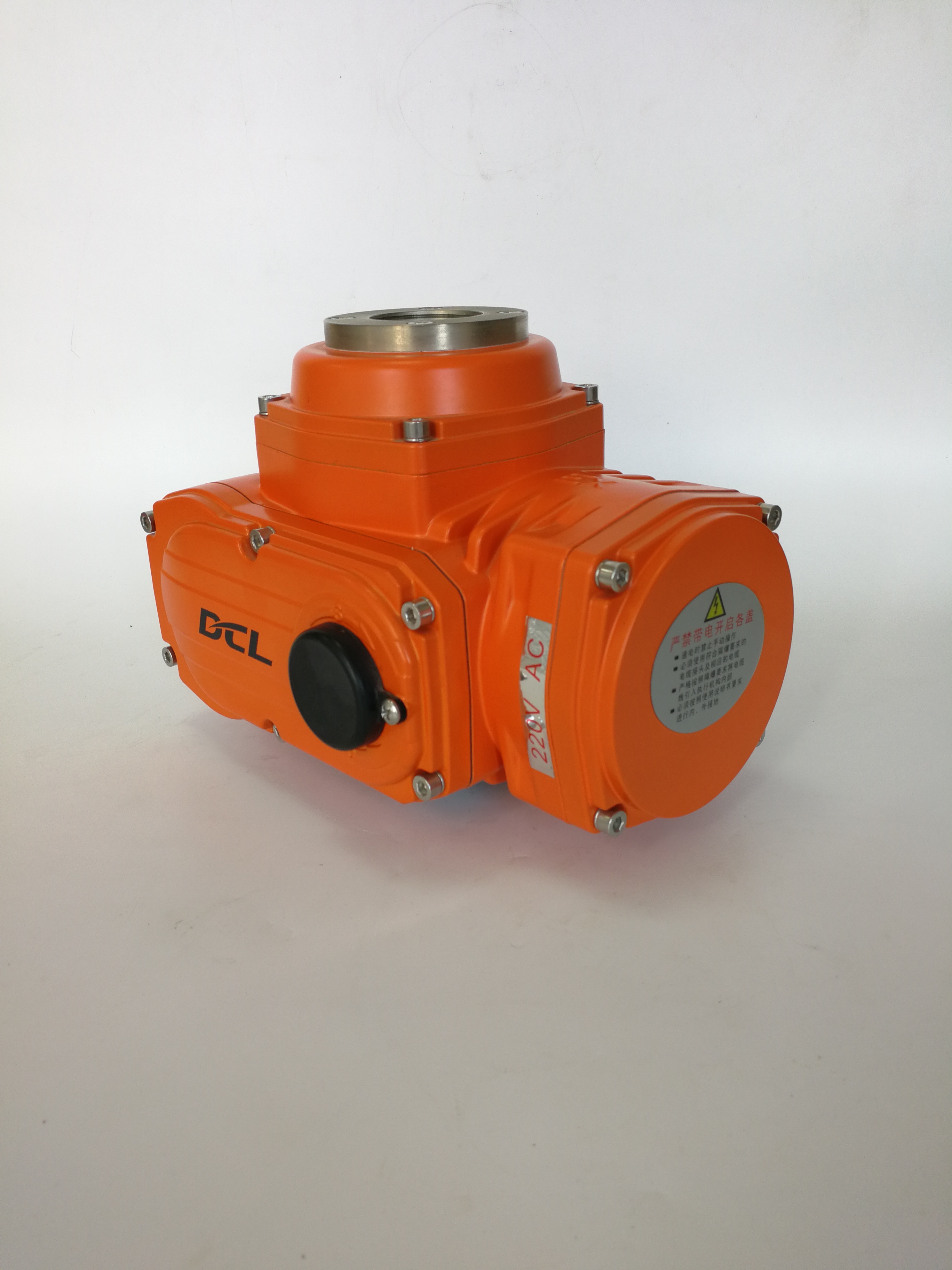

Durable Die-Cast Aluminum 600Nm IP67 Explosion-Proof Actuator
Hubungi saya untuk sampel dan kupon gratis.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Torsi standar | 50nm hingga 600nm | Waktu standar | 20 -an hingga 45 -an |
|---|---|---|---|
| Catu daya | 24VAC/110VAV/220VAC/380VAC/24VDC | Tenaga Motorik | 6W hingga 90W |
| Tingkat Perlindungan | IP68 NEMA 4X | Berat total | 3kg hingga 10kg |
| Suhu Sekitar | -25 ℃ ~+55 ℃ / -13 ° F ~+131 ° F. | Sudut pemasangan | 360° |
Deskripsi Produk
Robust die cast aluminum alloy housing fire safe compact actuator / IP67 Waterproof
Features
- Quarter turn operation with mechanical limits
- Cylinder stop type connection surfaces of very housing cover, flame proof gap and length complied to UL and CSA standard
- Class 1 Zone 1 AExdIICT4 grade and Class 1 Division 1, Group C, D T4.
- Double lip skeleton oil seal and O-ring seal to ensure protection grade to waterproof IP68.
- Hard die cast aluminum alloy enclosure to ensure actuator's resistance of high explosion pressure(＞2.2 MPa).
- Non-ventilated motor with fire treatment and thermal overload protection
- Manual override with Allen wrench and handwheel
- ISO5211 multi flange mounting
- CSA certification in process per UL standard/ATEX marked
Description
DCL fire-safe compact electric actuators can be powered by a wide range of voltages, including 24VDC, 24VAC, 110VAC, 220VAC, 380VAC, and 440VAC. The integrated design combining the motor, housing, and control module makes DCL explosion-proof actuators the most compact models within their torque range.
The machining accuracy of the enclosure is 100% inspected and precisely controlled by DCL to ensure maximum safety in the event of an explosion. Each actuator also undergoes a full underwater sealing test to verify protection levels of IP68 and NEMA 7.
All DCL actuators are rigorously tested and certified by CSA according to UL and CSA standards. CSA certification for both Zone and Division systems is expected in Q4 2020, and the product has been ATEX certified by an EU-authorized certification body.
Specification
| Type | Ex05E | Ex10E | Ex20E | Ex40E | Ex60E |
|---|---|---|---|---|---|
| Power | AC110V/AC220V | ||||
| Output Torque | 50Nm | 100Nm | 200Nm | 400Nm | 600Nm |
| Acting Time | 20S | 30S | 30S | 30S | 45S |
| Turning Angle | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Motor Power | 10W | 25W | 40W | 90W | 90W |
| Rated Current | 0.24/0.15A | 0.57/0.30A | 0.63/0.35A | 1.12/0.64A | 1.18/0.67A |
| Total Weight | 3.0kg | 5.0kg | 5.5kg | 9.5kg | 10.0kg |
| Input Signal | 4-20mADC,1-5VDC,2-10VDC | ||||
| Output Singal | 4-20mADC | ||||
| Basic Error | not more than ±1% | ||||
| Reciprocating Error | not more than 1% | ||||
| Dead Space | 0.5%-5.0% adjustable | ||||
| Damping Characteristic | 0 times | ||||
| Repeating Error in Actuator | ≤1% | ||||
| Insulating Resistance | 100MΩ/500VDC | ||||
| Withstand Voltage Class | 1500VAC 1minutes | ||||
| Protection Class | IP67 | ||||
| Explosive-proof grade | Exd II BT4Gb | ||||
| Installation Angle | 360°at any angle | ||||
| Electric Interface | 2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected. | ||||
| Ambient Temperature | -20℃~+60℃ | ||||
| Optional Function | Over-torque protector/Dehumidify Heater/Passive contact switch | ||||
| Remark | Any other input or output signal needed, please specified in purchase order. | ||||
