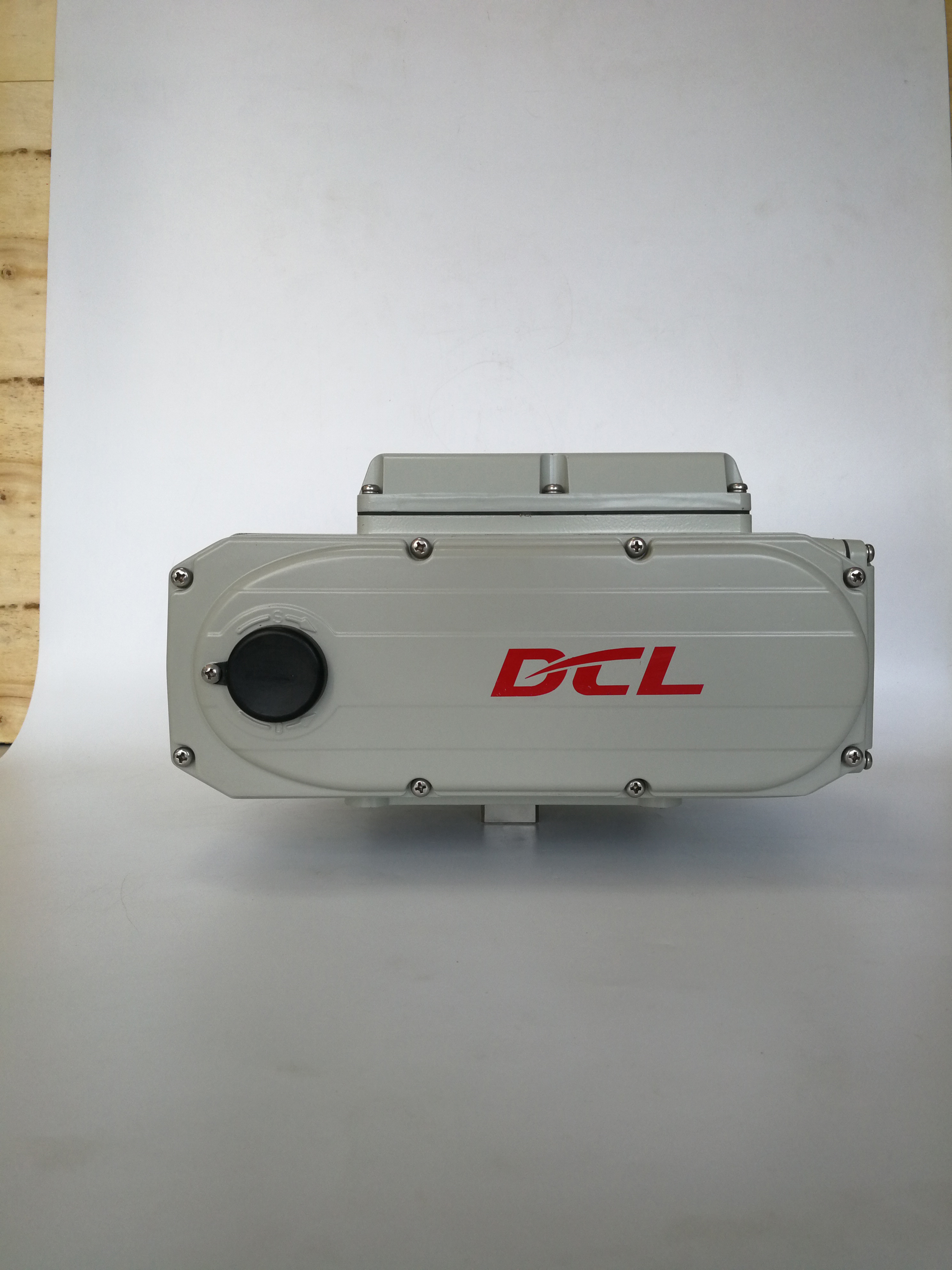

Rohs CE 1000Nm 30S AC110V Weather-proof Quarter Turn Electric Actuator

  • Rohs CE 1000Nm 30S AC110V Weather-proof Quarter Turn Electric Actuator
  • Rohs CE 1000Nm 30S AC110V Weather-proof Quarter Turn Electric Actuator
Tempat asal WUHAN, CINA
Nama merek DCL
Sertifikasi CE/ROHS/CSA/IP67
Nomor model Semua seri umum DCL
Kuantitas min Order 1 buah
Kemasan rincian Karton/Palet
Waktu pengiriman 7 Hari Kerja
Syarat-syarat pembayaran D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan 5000 buah/bulan
Detail produk
Nama Produk aktuator listrik giliran kuartal Bersertifikat CSA
Sudut pemasangan 360° Berat Total 1.2kg hingga 20kg
Tenaga Motorik 6W hingga 140W Fitur Bukti Cuaca
Tinggalkan pesan
Deskripsi Produk
CSA certificated quarter turn electric actuator/complied to UL standard
Features:
  • Torque from 18Nm to 3000Nm/160in.lbs to 26550 in.lbs
  • All parts are certified by CSA, complied to UL 429 and CSA C22.2
  • Weather proof NEMA 4/4X and IP67 sealing grade with aluminum alloy housing cover/IP 68 optional
  • Duty cycle 60% for 18Nm/160in.lbs model and 70% for all other model
  • Self-locking at any position when power off
  • Limit switches to confirm valve position/potentiometer or position transmitter optional
  • ISO 5211 multi-flange mounting
  • Manual override with wrench or handwheel
  • Optional functions such as Modbus Communication,fail-safe return,over torque protection,Dehumidifying heater and so on.
Description

Since 2013, the standard weatherproof series of DCL electric actuators has maintained continuous CSA certification, fully and strictly complying with both United States (ANSI/UL) and Canadian (CSA C22.2) baseline electrical safety standards. Expanding its hazardous location capabilities, the DCL explosion-proof series successfully navigated rigorous explosive environment testing and officially achieved full CSA certification for hazardous locations in 2020.

Beyond deepening North American safety protocols, the entire DCL product portfolio is CE marked and fully complies with RoHS 3.0 environmental directives. To guarantee absolute objectivity across all compliance metrics, all environmental tolerance and material safety testing operations are exclusively executed by the authoritative third-party agency SGS.

Specification:
Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AC110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AC110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AC110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AC110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AC110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-200 92S/2000Nm
19.5Kg
DCL-300 110S/3000Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm
3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~600Nm 9.5Kg
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-200 DN350~400 DN250 DN900
DCL-300 DN450~600 DN300~350 DN1000~1200
Rohs CE 1000Nm 30S AC110V Weather-proof Quarter Turn Electric Actuator 0 Rohs CE 1000Nm 30S AC110V Weather-proof Quarter Turn Electric Actuator 1
About Us:

Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.

DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
