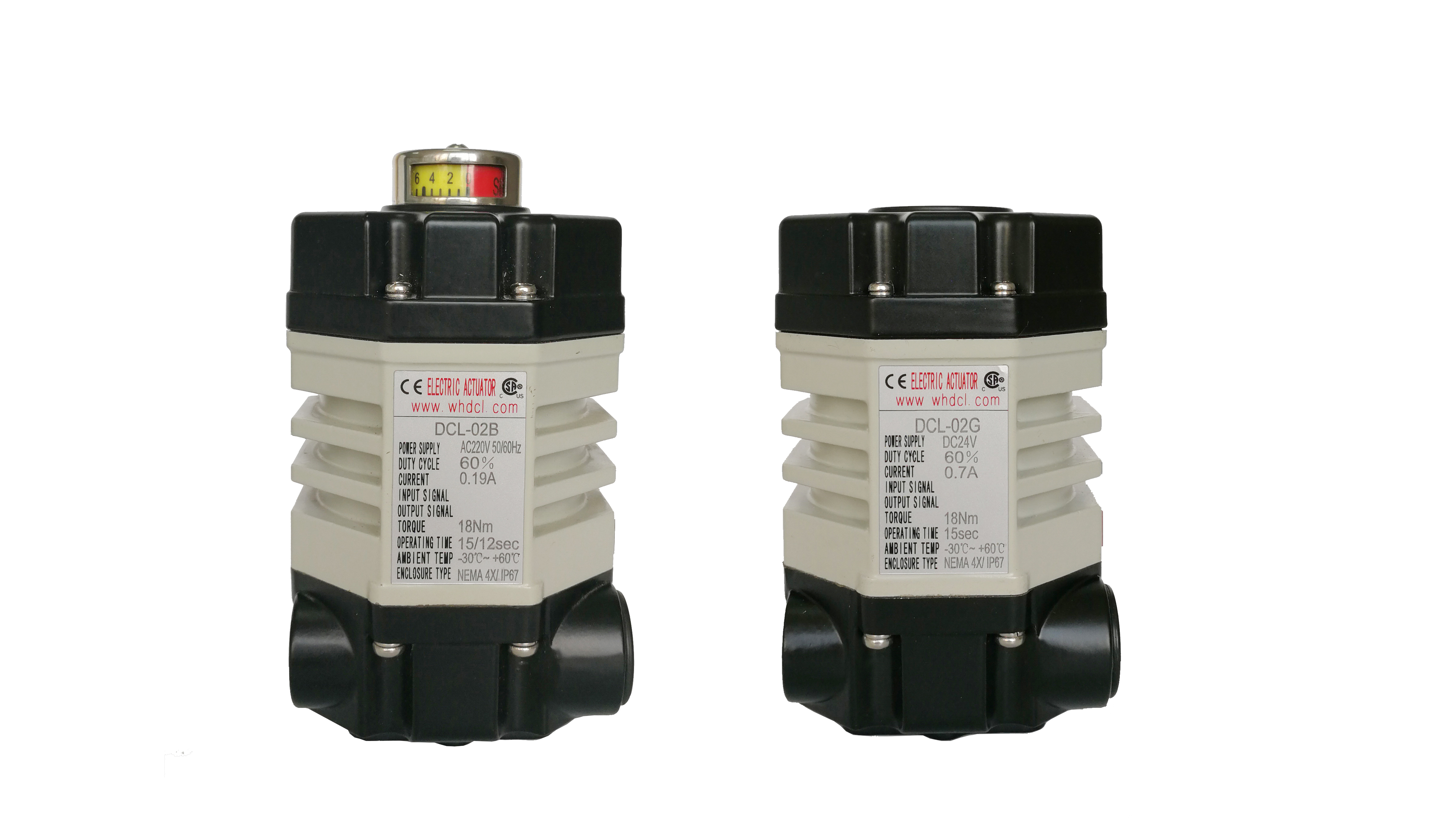

CE CSA UL AC220V Ultra Small Electric Quarter Turn Actuator

  • CE CSA UL AC220V Ultra Small Electric Quarter Turn Actuator
Tempat asal WUHAN, CINA
Nama merek DCL
Sertifikasi CE/ROHS/CSA/IP67
Nomor model DCL-02G
Kuantitas min Order 1 buah
Kemasan rincian Karton/Palet
Waktu pengiriman 7 hari kerja
Syarat-syarat pembayaran D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan 5000 buah/bulan
Detail produk
Waktu/torsi standar 15S/18NM Waktu/torsi opsional 7S/9NM 60S/18NM
Berat Total 1.2KG Catu daya 24VDC / 12VDC Opsional
Tenaga motorik 8w Suhu lingkungan -25 ℃ ~+55 ℃ / -13 ° F ~+131 ° F.
Sudut pemasangan 360° Tingkat Perlindungan IP67 NEMA4/4X
Tinggalkan pesan
Deskripsi Produk
24VDC/12VDC aluminum alloy housing ultra-small electric Quarter Turn Actuator

DCL-02 dimension and parameters.pdf

Features
  • Quarter turn standard, turning angle smaller than 360° optional
  • Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
  • Watertight housing cover with IP67 grade for indoor and outdoor use
  • Two more limit switches to confirm valve position
  • Self-locking when power off
  • Strong gear train with soft nitriding metal gears
  • Manual operation with handle
  • CE marked/RoHS 3 tested/CSA listed
Description

The DCL-02G is purpose-built for high-security industrial environments requiring 12VDC or 24VDC safety power supplies. Its low-voltage architecture inherently eliminates electrical hazards, ensuring uncompromising safety for on-site personnel.

At its core is a rare-earth permanent magnet motor, which generates significantly higher magnetic flux than conventional ferrite alternatives. This allows the actuator to deliver superior torque and high power density within a remarkably compact footprint. Furthermore, the motor is engineered for exceptional load stability. Unlike standard DC motors prone to speed fluctuations, the DCL-02G maintains a consistent operating velocity regardless of load variations. This precision ensures fluid valve control, minimized vibration, and a notably low thermal footprint—delivering reliable, efficient performance in the most demanding applications.

Performance Parameters
Performance Parameters



Type DCL-02 DCL-MZZ(Multiple turns)
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm 　
Turning Angle or turns 0～900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E , 　
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A 3A 1A 1A 2A

CE CSA UL AC220V Ultra Small Electric Quarter Turn Actuator 0

CE CSA UL AC220V Ultra Small Electric Quarter Turn Actuator 1

About Us:

Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.

DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
