Exd II CT4Gb Explosion Proof 100Nm 30S IP67 Valve Actuator

  • Exd II CT4Gb Explosion Proof 100Nm 30S IP67 Valve Actuator
Tempat asal WUHAN, CINA
Nama merek DCL
Sertifikasi CE/ROHS/CSA/IP67
Nomor model Seri DCL-EX
Kuantitas min Order 1 buah
Kemasan rincian Karton/Pallet
Waktu pengiriman 7 hari kerja
Syarat-syarat pembayaran D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan 5000PCS/Bulan

Hubungi saya untuk sampel dan kupon gratis.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Bukti Ledakan Gagal Aktuator Listrik Aman Torsi standar 50nm hingga 600nm
Waktu standar 20 -an hingga 45 -an Kemasan Paket kecil
Jenis Aktuator Turn Quarter Fitur Terlalu banyak perlindungan torsi
Tinggalkan pesan
Deskripsi Produk
Explosion proof fail safe electric actuator with small package / installation at any angle

The DCL-Ex series fire-safe electric actuators are designed with a fail-safe function. Following an explosion or emergency shutdown, once backup power is restored, the actuator will automatically drive the valve to a pre-set safe position—such as full open or full close—even if the external control signal is unavailable. In addition, the self-locking mechanism ensures the valve remains securely at its last known position without hunting or unintended movement.

The DCL-Ex series actuators are suitable for more than 90% of explosive gas environments, excluding coal mine (colliery) applications. With proven field performance, over 10,000 DCL explosion-proof actuators have been operating safely for more than a decade in hazardous industrial environments.

All DCL-Ex actuators have undergone rigorous testing conducted by CSA, covering both Zone and Division systems in full compliance with UL and CSA standards. ATEX certification has been obtained, while CE and RoHS 3 compliance have been verified through testing by SGS.

Specification:
Type Ex05E Ex10E Ex20E Ex40E Ex60E
Power AC110V/AC220V
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm
Acting Time 20S 30S 30S 30S 45S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W
Rated Current 0.24/0.15A 0.57/0.30A 0.63/0.35A 1.12/0.64A 1.18/0.67A
Total Weight 3.0kg 5.0kg 5.5kg 9.5kg 10.0kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance 100MΩ/500VDC
Withstand Voltage Class 1500VAC 1minutes
Protection Class IP67
Explosive-proof grade Exd II BT4Gb
Installation Angle 360°at any angle
Electric Interface 2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected.
Ambient Temperature -20℃~+60℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch
Remark Any other input or output signal needed, please specified in purchase order.
Features:
  • Quarter turn operation with mechanical limits
  • Heavy duty motor with thermal overload protection
  • Rugged IP68/NEMA 4X aluminum alloy housing
  • C3 level corrosion resistance with powder coated, 1000 hours salt spray
  • Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
  • Over torque protection is available
  • Self-locking high strength gear train to keep last known position
  • Standard ISO5211 direct installation
  • Manual override with Allen wrench or handwheel
  • CSA certification in process per UL and CSA standard/CE marked/ATEX

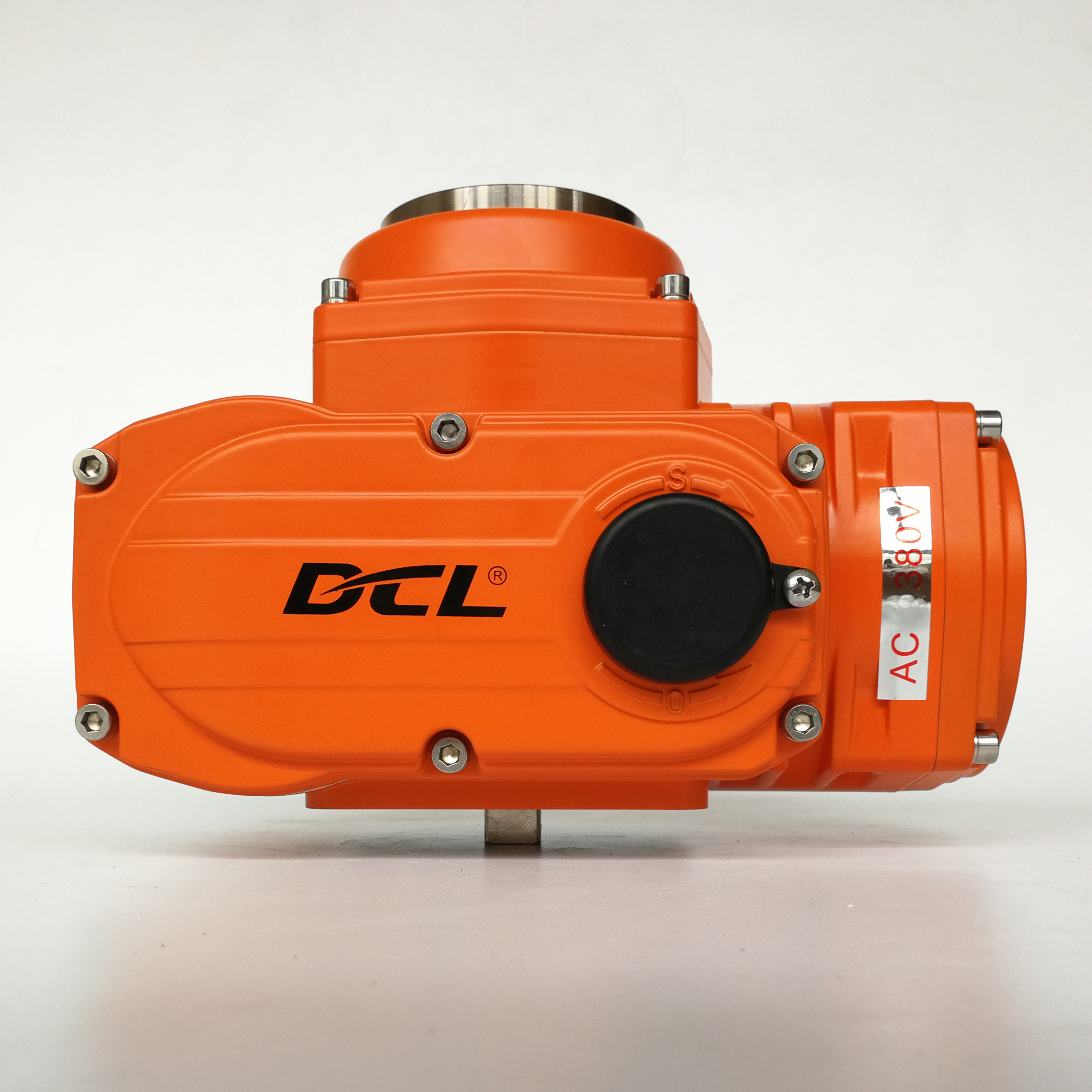

Exd II CT4Gb Explosion Proof 100Nm 30S IP67 Valve Actuator 0
