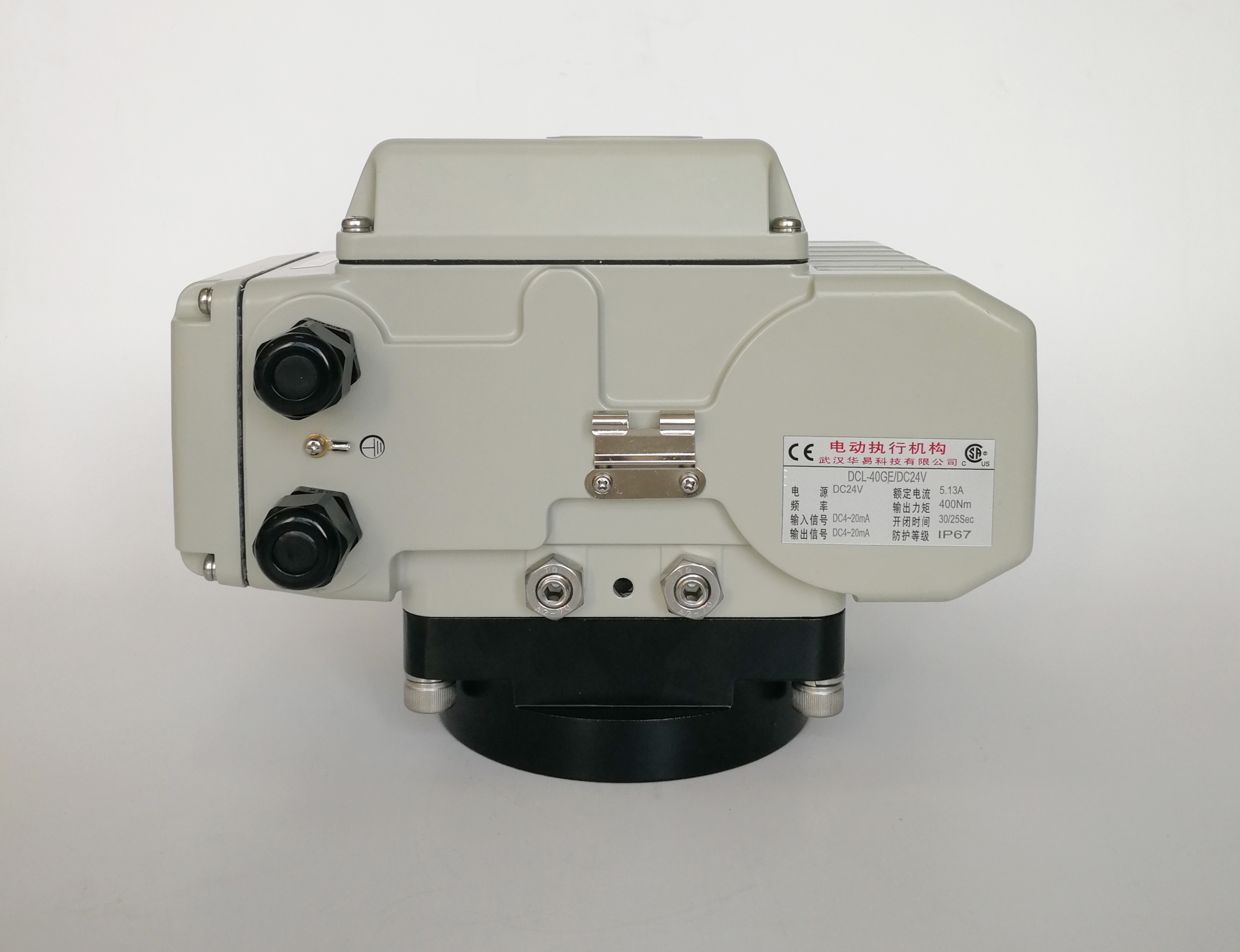

Weatherproof Adjustable 360° 4~20mA IP67 24V DC Motorized Rotary Actuator
Hubungi saya untuk sampel dan kupon gratis.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| nama | Aktuator putar bermotor DC | Fitur | Perlindungan Kelebihan Beban Termal |
|---|---|---|---|
| Catu daya | 24VDC | Sudut pemasangan | 360° |
| Tenaga Motorik | 30W/70W | Suhu Sekitar | -25 ℃ ~+55 ℃ / -13 ° F ~+131 ° F. |
| Jenis | Aktuator Turn Quarter | Tahan air | Aktuator listrik IP67 tahan cuaca |
| Menyoroti | weatherproof 360° rotary actuator,adjustable 4~20mA DC actuator,IP67 24V motorized actuator |
||
Deskripsi Produk
DC motorized rotary actuator with F-class insulation rate motor / thermal overload protection
Description
All DCL electric actuators adopt specially formulated copper alloy worm gears. Unlike ordinary gears that only plate copper on the surface, DCL’s worm gear is a one-piece casting made entirely of bronze alloy. This design greatly enhances its overall strength and wear resistance.
In electric actuators, the most vulnerable component is often the final-stage worm or spur gear, as it is directly connected to the output shaft and bears the highest torque and friction. Therefore, the durability of this gear directly determines the actuator’s service life. DCL addresses this by designing a larger worm gear with an extended radius, which effectively reduces the force exerted on each gear tooth under the same torque load. Combined with the full-bronze alloy construction, this ensures exceptional reliability and longevity.
Furthermore, gear runout significantly affects both transmission noise and mechanical lifespan. DCL’s dedicated Supplier Quality Engineering (SQE) team rigorously controls the quality of all incoming components. Every cover, bearing, gear, and electronic part is thoroughly tested before entering the warehouse, guaranteeing consistent performance and durability across all DCL actuators.
Specification:
| Performance Parameters | ||||
| Type | DCL-10GE | DCL-40GE | ||
| DC24V±10% | DC24V±10% | |||
| Motor Power | 30W | 70W | ||
| Max Current | 3.3A | 1.8A | 8.9A | 6.6A |
| Action Time | 15S | 30S | 15S | 30S |
| Output Torque | 0～100Nm Optional | 100～400Nm Optional | 100～600Nm Optional | |
| Total Weight | 4.5kg | 9.5kg | ||
| Input Signal | 4～20mADC | |||
| Output Signal | 4～20mADC | |||
| Basic Error | no more than ±1% | |||
| Reciprocating Error | No more than 1% | |||
| Dead Space | 0.5~5.0% adjustable | |||
| Damping Characteristic | 0 times | |||
| Repeating Error in Actuator | ≤1% | |||
| Turning Angle | 0～900 Adjustable | |||
| Insulating Resistance | 100MΩ/250VDC | |||
| Withstand Voltage Class | 500VAC 1 minutes | |||
| Protection Class | IP67 | |||
| Installation Angle | 3600 at any angle | |||
| Electric Interface | Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line | |||
| Ambient Temperature | -25～+55℃ | |||
| Optional Function | Heater/Passive contact switch/Dome indicator | |||
Features
- Quarter turn operation modulated by 24VDC power
- Torque can be precisely setting within a certain range
- Multi input signal switchable in one smart control pack
- Auto-calibrating with continuously output position monitoring signal as standard
- Heavy duty DC brushless motor low temperature rising, longer life, provide high start torque and very small inertia force
- Torque test control and over torque protection by current
- Weatherproof IP 67 robust aluminum alloy enclosure, protection against dust and water
- All metal gears with self-locking worm gear
- ISO5211 direct installation
- UL standard/CSA listed/CE marked/RoHS 3 complied
